MWN-244 B

Images

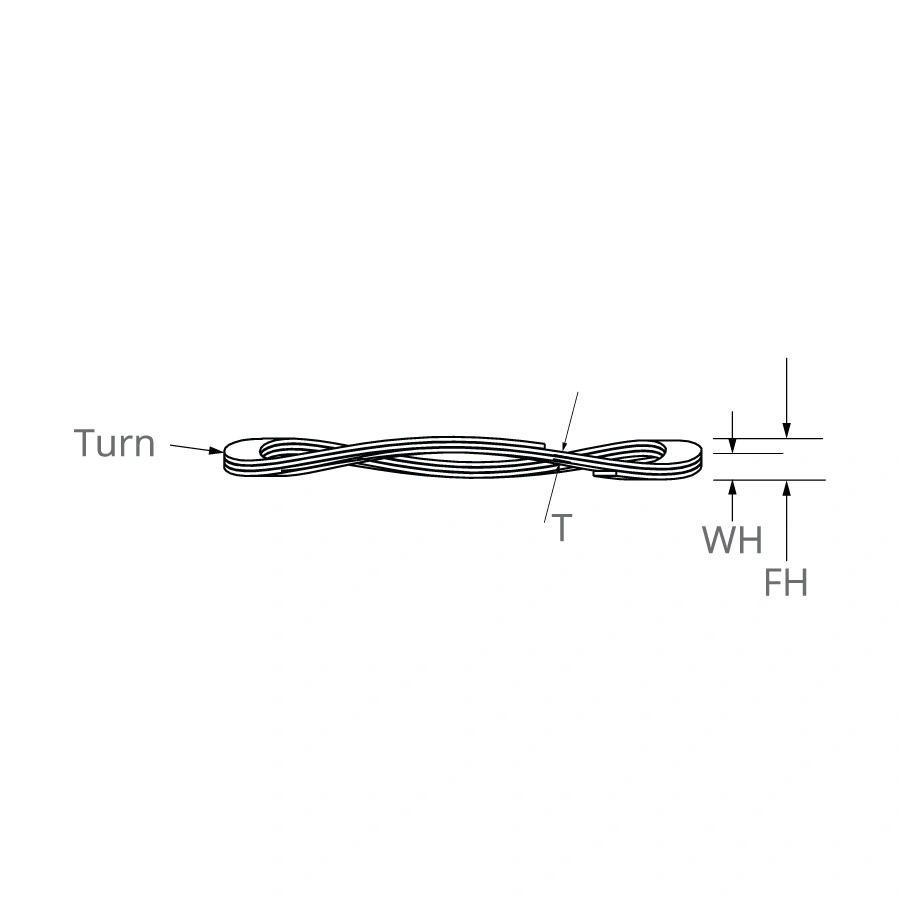

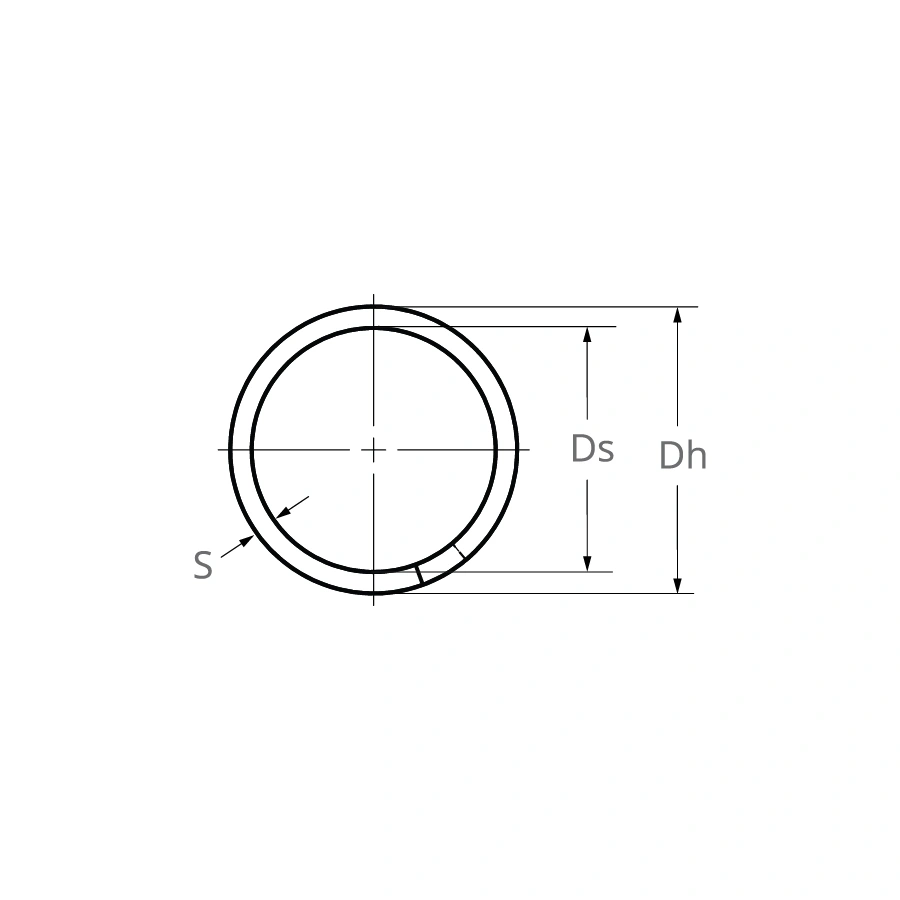

Product Image

CAD

Part Data

  • Operates In Housing Diameter • Dh 62 mm
  • Shaft Diameter Clearance • Ds 50.650 mm
  • Section • S 4.520 mm
  • Thickness • T 0.610 mm
  • Wave Spring Design Nested
  • Free Height • Fh 5.540 mm
  • Number Of Waves 4
  • Number Of Turns 3
  • Work Height • WH 3.580 mm
  • Spring Rate (Ref) 259 N/mm

Performance Data

  • Load @ Work Height • Wh 507.300 N
  • Load @ Free Length 4.500 N

Materials

  • Carbon Steel (SAE 1060-1090)
  • Special Material Grades
  • Stainless Steel AISI 302
  • Stainless Steel AISI 316
  • Stainless Steel (17-7 PH/C)

Documentation

Description

Nested Metric Wave Springs. Two to three turn wave springs are coiled in parrellel to allow for higher loads. The spring rates increase proportionally to the number of turns, providing for a high, accurate load in a very small axial space.
