单层波形弹簧

适用低至中等载荷的小形变应用。

单层波形弹簧适用于从轻载到重载的多种应用场景。

根据设计和钢丝类型，它可满足从低到高推力载荷的需求。单层波形弹簧可适配多种孔径和轴径，是碟形弹簧的理想替代方案，特别适用于狭窄的径向空间、低间隙环境以及球轴承或滚子轴承的应用。

An array of single-turn wave springs, arranged neatly to showcase their uniformity and precision engineering. These springs offer consistent compression and deflection properties, ideal for a wide range of industrial applications requiring reliable performance and compact design

技术优势

孔内自固定选项，弹簧可自动实现固定与居中
与冲压波垫圈或碟形弹簧相比，弹簧的刚度和载荷公差精度提高超过50%。
与冲压零件不同，波形弹簧浪费的材料更少

SST – 英制单层波形弹簧

专为轻至中载的小形变应用设计，提供多种波数和材料厚度选择，适配广泛的孔径和轴径需求。

MST – 公制单层波形弹簧（轴承预紧）

专为匹配常见轴承尺寸设计，可轻贴孔壁，最大限度贴合轴承外圈的。通过降低振动和噪音，有效延长轴承寿命。

NST — 窄型单层波形弹簧

专为径向空间受限的应用设计，适用于多种标准轴承直径，提供紧凑而高效的解决方案。

SRT – 单层圆线波形弹簧

适用于高载荷、高弹簧刚度、小形变、静态或低循环应用。作为碟形弹簧的经济高效替代方案，兼具高性能与成本效益。

端部类型

An illustration of a single-turn wave spring with overlapping ends, showcasing its innovative design for secure fastening and enhanced stability in mechanical assemblies. This configuration ensures reliable compression and deflection properties, suitable for various industrial applications

搭口式

搭口式单圈波形弹簧的端部设计为一端搭接另一端。这样的设计确保了弹簧在与接触面配合时不会产生刮擦，同时避免了在散装包装中零件缠绕的问题。

gap type wave spring end configuration

开口式

开口式波形弹簧的两端之间留有物理间隙。Rotor Clip 可以精确控制间隙的距离，以适应需要通过弹簧间隙的组件。

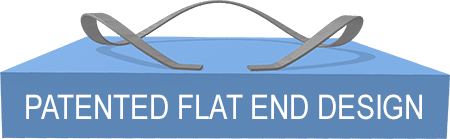

An image highlighting the patented flat end design of a wave spring by Rotor Clip, showcasing its unique configuration for optimized load distribution and enhanced performance in mechanical applications. This design ensures precise alignment and secure fastening, contributing to improved reliability and longevity

专利平端

我们的专利平端波形弹簧设计将弹簧端部平滑化，彻底消除尖锐边角可能对轴承造成的损害。平整的端部能够与配合部件无缝贴合，从而保护轴承。

应用示例

单层波形弹簧应用于所有行业。以下是一些示例。

更多波形弹簧应用示例

Rendered illustration demonstrating the application of a single-turn wave spring for bearing preload. This configuration showcases the spring's role in maintaining optimal tension on bearings, ensuring smooth operation and reduced play for enhanced performance in mechanical systems

轴承预紧用单层波形弹簧

An illustration featuring an ultrasonic motor integrated with a wave spring, highlighting its role in providing precise tension control and stabilization within the motor assembly. This configuration contributes to smooth and efficient operation, particularly in high-precision applications requiring minimal vibration and noise

超声波电机用单层波形弹簧

An illustration depicting a quick connector equipped with a single-turn wave spring, showcasing its efficient and reliable locking mechanism for secure connections. The wave spring ensures consistent compression, facilitating easy attachment and detachment while maintaining a tight seal for fluid or gas transfer applications

快速接头用单层波形弹簧

An illustration featuring an exhaust sensor equipped with both a wave spring and a spiral ring, showcasing their combined role in ensuring precise positioning and secure attachment within the exhaust system. This configuration provides stability and reliability, facilitating accurate sensor readings for optimal engine performance

排气传感器用单层波形弹簧，具有获得专利的平端设计

An illustration depicting a steering assembly integrated with a wave spring, highlighting its contribution to smooth and responsive steering operation. The wave spring provides controlled resistance and stability, enhancing driver confidence and vehicle handling in various road conditions

转向总成用单层波形弹簧

An illustration of a pump featuring a single-turn wave spring, demonstrating its application in providing consistent pressure and flow control. The wave spring ensures efficient pump operation, contributing to reliable performance and longevity in various fluid handling systems

泵用单层波形弹簧

Rotor Clip 单圈波形弹簧

sst wave spring

SST

NST Rotor Clip Wave Spring

NST

MST Rotor Clip Wave Spring

MST

3D render of a round wire wave spring, featuring a continuous loop of wire formed into precise, uniform waves, designed for consistent load pressure in confined spaces

SRT
