Part Data
- Housing or Shaft Shaft
- Axial or Radial Axial

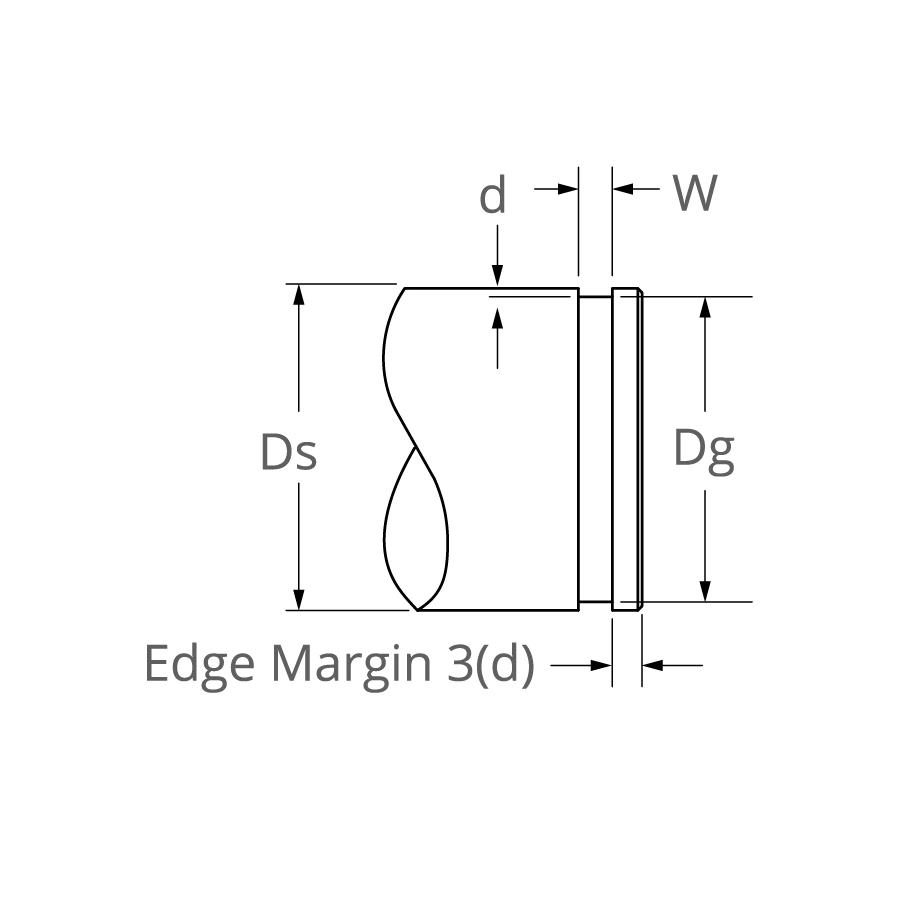

- Shaft Diameter Ds 3.938 inches
- Ds mm 100.000 mm
- Groove Diameter Dg 3.752 - 3.764 - inches
- Groove Width W 0.120 - 0.125 - inches
- Groove Depth D 0.090 inches

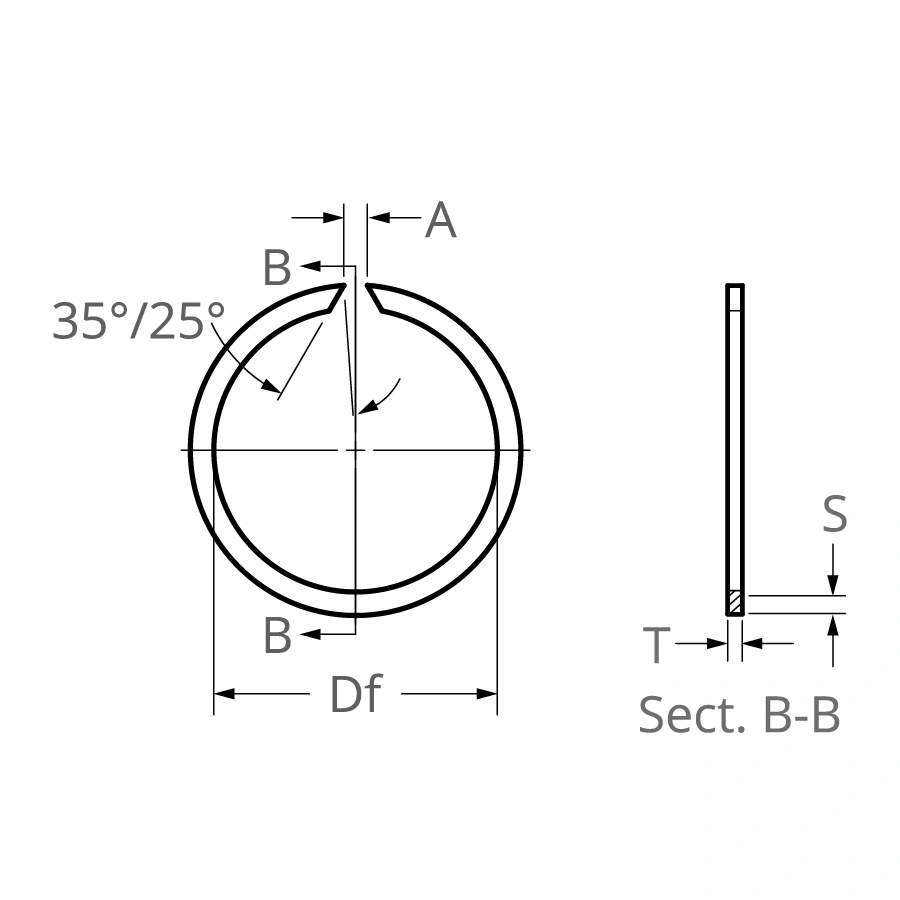

- Free Diameter Df 3.635 - 3.713 - inches
- Section S 0.276 - 0.286 - inches
- Thickness T 0.107 - 0.111 - inches
- Free Gap A 0.286 - 0.250 - inches
- Hardness ST 42.000 - 53.000 - HRC
Performance Data
- Allowable Static Thrust Load 13,470.000 lbs.
Materials
- Carbon Steel (SAE 1060-1090)
Finishes
***For plated rings, add .002" (.05 mm) to the listed maximum thickness.
- PA - Phosphate, Carbon Steel
- PD - Phosphate and Oil, Carbon Steel
- PAL - Phosphate with Sealer, Carbon Steel
- HPD - Heavy Phosphate and Oil, Carbon Steel
- ZD - Zinc Plating, Carbon Steel
- ZF - Zinc Bright, Carbon Steel
- ZDL - Zinc Dichromate with Sealer, Carbon Steel
- HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
- Z3X - Trivalent Chromate over Zinc, Carbon Steel
- ZFF - Zinc Flash, Carbon Steel
- CF - Copper Flash, Carbon Steel
- OIL - Oil over Steel, Carbon Steel
Documentation
Description
Snap Ring, External, Inch. Once installed in the groove of a shaft, the portion of the ring protruding from the groove holds an assembly in place.
