Rings / Self-Locking and Push-On Retaining Rings / TY

Images

Product Image

CAD

Part Data

  • Housing or Shaft Shaft
  • Axial or Radial Axial
  • Shaft Diameter Ds 0.124 - 0.126 - inches
  • Ds mm 3.170 mm
  • Thickness T *** 0.009 - 0.011 - inches
  • No. Of Prongs 4.000

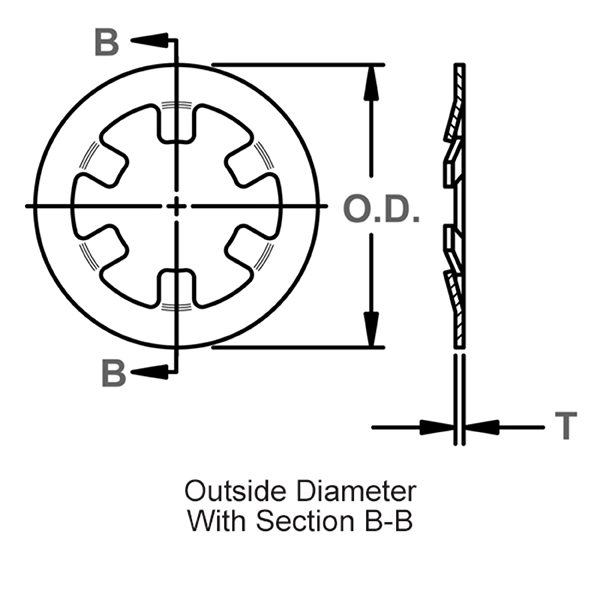

  • Outside Diameter O.D. 0.320 - 0.330 - inches
  • Weight Per 1000 Pcs. 0.140 lbs.

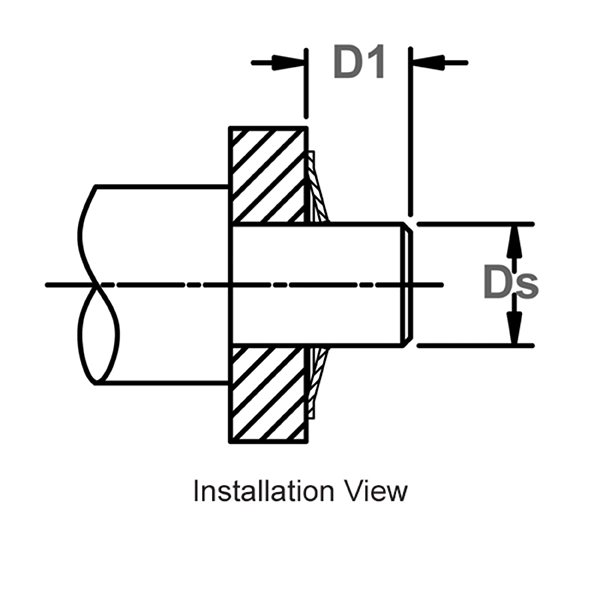

  • Min. Distance Face Of Part To End Of Shaft D1 0.040 inches
  • Hardness ST 84.000 - 86.000 - HR15N
  • Hardness SS 82.500 - 86.000 - HR15N
  • Hardness BC 77.000 - 82.000 - HR15N
  • Interchange Waldes Truarc 5105 12
  • Interchange IRR 6100 12
  • Interchange Anderton N1405 0012
  • Interchange Mil Or Aero
  • Interchange Din

Performance Data

  • Thrust Load 20 lbs.

Materials

  • Carbon Steel (SAE 1060-1090)
  • Stainless Steel (PH15-7 Mo, PH17-7)
  • Beryllium Copper
  • Special Material Grades

Finishes

***For plated rings, add .002" (.05 mm) to the listed maximum thickness.

  • PA - Phosphate, Carbon Steel
  • PD - Phosphate and Oil, Carbon Steel
  • PAL - Phosphate with Sealer, Carbon Steel
  • HPD - Heavy Phosphate and Oil, Carbon Steel
  • ZD - Zinc Plating, Carbon Steel
  • ZF - Zinc Bright, Carbon Steel
  • ZDL - Zinc Dichromate with Sealer, Carbon Steel
  • HZDL - Heavy Zinc Dichromate with Sealer, Carbon Steel
  • Z3X - Trivalent Chromate over Zinc, Carbon Steel
  • ZFF - Zinc Flash, Carbon Steel
  • CF - Copper Flash, Carbon Steel

Documentation

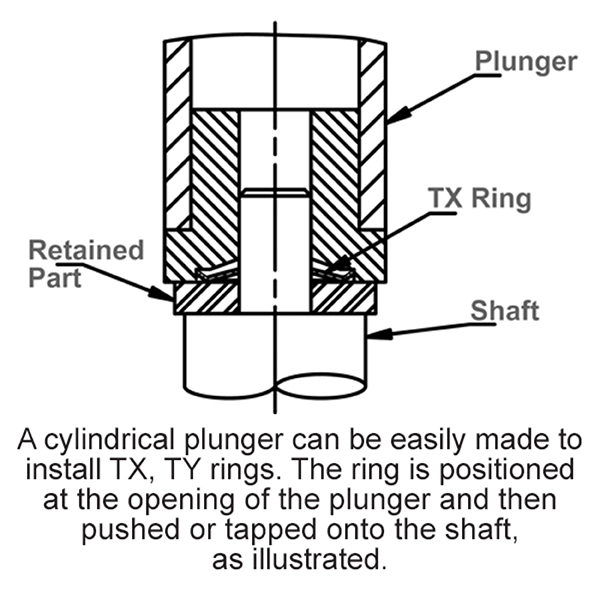

Description

External, Self-Locking Push-On (Flat Rim). This ring features an outer rim with a series of prongs protruding into the center. The ends create interference with the shaft when the ring is installed and a load introduced to the other side. The outer rim of the TY is flat.
